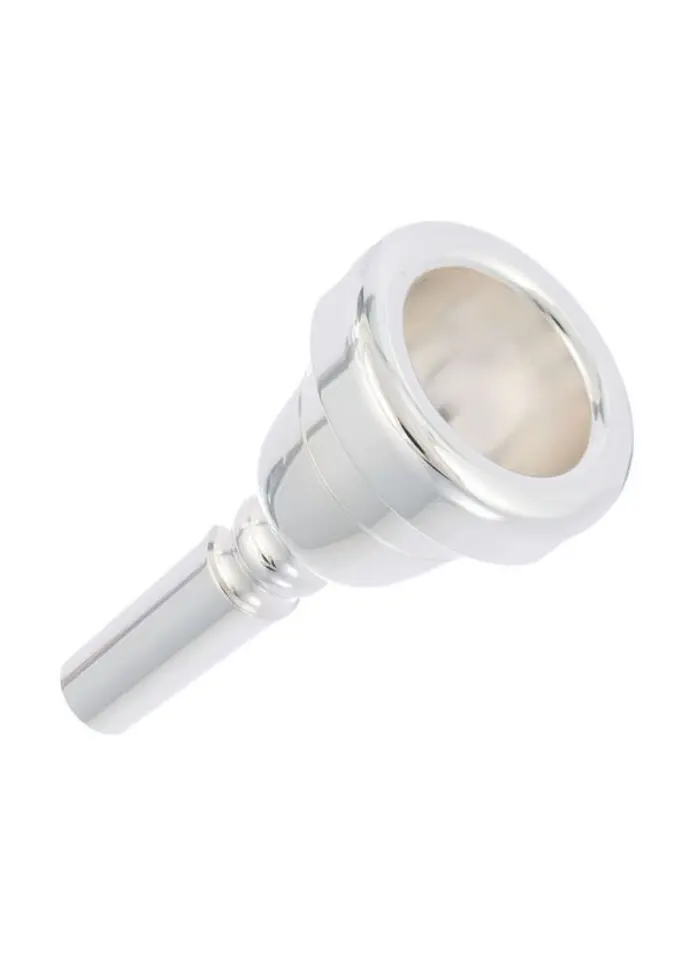

Warburton One Piece Trombone Mouthpiece
Warburton were pleased to announce the arrival of their high quality one-piece trombone mouthpiece. It was due to the demand from many players who wanted a mouthpiece in size that they are familiar with. While the numbering system is familiar, (using Bach nomenclature), each model has been designed to eliminate problems that have come to light over the years. Warburton have made the rims more comfortable, and the throat sizes are balanced to the cups. The back-bores are maximized for tone production and projection.
| Model | OD | Bore | ID | Cup Depth | Description |
| 1G | 1.62 | 0.295 | 1.09 | Deep | Extra-Large, Schilke 60 |
| 1 1/4 G | 1.61 | 0.295 | 1.09 | Deep | Cup diameter is smaller than 1G, but still very large and deep. Narrower rim than 1 1/2 and 1 |
| 1 1/2 G | 1.6 | 0.295 | 1.08 | Deep | For many years, the standard mouthpiece for the serious bass trombone player. |
| 2G | 1.58 | 0.295 | 1.06 | Deep | Narrower ID than the 1 1/2G. Full resonant sound in all registers |
| 3G | 1.56 | 0.281 | 1.03 | Deep | Narrower than 2G with a deep bass trombone cup, throat, and backbore. Schilke 57 |
| 4G | 1.56 | 0.281 | 1.022 | Deep | A versatile, large-diameter mouthpiece. Schilke 56, Wick 3 |
| 4G-E | 1.56 | 0.281 | 1.022 | Deep | As 4G but with European (Boosey/Willson) shank |
| 4GD | 1.56 | 0.281 | 1.022 | Extra-Deep | Like 4G with an extra deep cup. .281 bore. |
| 4GDL | 1.56 | 0.29 | 1.022 | Extra-Deep | Like 4GD with a large .290 bore. Excellent euphonium mouthpiece. Full low register. SM3 |
| 4GD-E | 1.56 | 0.281 | 1.022 | Extra-Deep | As 4GD but with European (Boosey/Willson) shank |
| 4GDL-E | 1.56 | 0.29 | 1.022 | Extra-Deep | Like 4GDL. Large .290 bore. Excellent euphonium mouthpiece. European shank. |
| 4GS | 1.56 | 0.277 | 1.022 | Medium-shallow | Shallower cup with smaller bore than 4G. Produces slightly brighter sound. .277 bore. |
| 4GS-E | 1.56 | 0.277 | 1.022 | Medium-shallow | As 4GS with Euro/Boosey/Willson shank. |
| 4GS-T | 1.56 | 0.266 | 1.022 | Medium-shallow | As 4GS with Tenor trombone/baritone shank. |
| 5G | 1.545 | 0.277 | 1.008 | Medium Deep | Favorite for symphonic trombone. Schilke 51, Wick 4 |
| 5G-E | 1.545 | 0.277 | 1.008 | Medium Deep | As 5G but with European (Boosey/Willson) shank |
| 5G-T | 1.545 | 0.266 | 1.008 | Medium Deep | As 5G but with Tenor trombone shank |
| 5GD | 1.545 | 0.281 | 1.008 | Deep | 5G diameter with a deep 4G cup. Full tone. |
| 5GD-E | 1.545 | 0.281 | 1.008 | Deep | As 5GD with Euro/Boosey/Willson shank. |
| 5GD-T | 1.545 | 0.266 | 1.008 | Deep | As 5GD with Tenor trombone/baritone shank. |
| 5GDL | 1.545 | 0.29 | 1.008 | Deep | Designed especially for the Euphonium for comfort, tone and performance. Wick SM4 |
| 5GDL-E | 1.545 | 0.29 | 1.008 | Deep | As 5GDL with European (pre 1974 Boosey and Willson shank). |
| 5GS | 1.545 | 0.266 | 1.008 | Medium-shallow | Shallower cup with smaller bore than 5G. Produces slightly brighter sound. .266 bore. |
| 5GS-E | 1.545 | 0.266 | 1.008 | Medium-shallow | As 5GS with Euro/Boosey/Willson shank. |
| 5GS-T | 1.545 | 0.25 | 1.008 | Medium-shallow | Terrific baritone mouthpiece. Versatile sound. Blends with alto horns and trombones. |
| 6 | 1.545 | 0.25 | 0.996 | Medium | Very efficient. Good high register. Bach 6 1/2, Schilke 50, Wick 5. Good student mouthpiece |
| 6-E | 1.545 | 0.25 | 0.996 | Medium | As 6 (above) with Euro shank |
| 6-T | 1.545 | 0.234 | 0.996 | Medium | As 6 with tenor trombone shank |
| 7 | 1.545 | 0.234 | 0.992 | Medium | Designed for trombone players who desire a full tone for section or solo playing. Schilke 48, Wick 9 |
| 11 | 1.512 | 0.234 | 0.972 | Medium | Brilliant ringing tone of large volume. Schilke 46, Wick 12 |
| 12 | 1.5 | 0.234 | 0.96 | Medium | Brilliant, crisp tone. The best selling model for all-around playing for tenor trombone. (Bach 12C) |
| Model Size | 1G or 1 1/4G or 1 1/2G or 2G or 3G or 4G or 4G E or 4GD or 4GD E or 4GDL or 4GDL E or 4GS or 4GS E or 4GS T or 5G or 5G E or 5G T or 5GD or 5GD E or 5GD T or 5GDL or 5GDL E or 5GS or 5GS E or 5GS T or 6 or 6E or 6T or 7 or 7T or 11T or 12T |
| Brand | Warburton |
